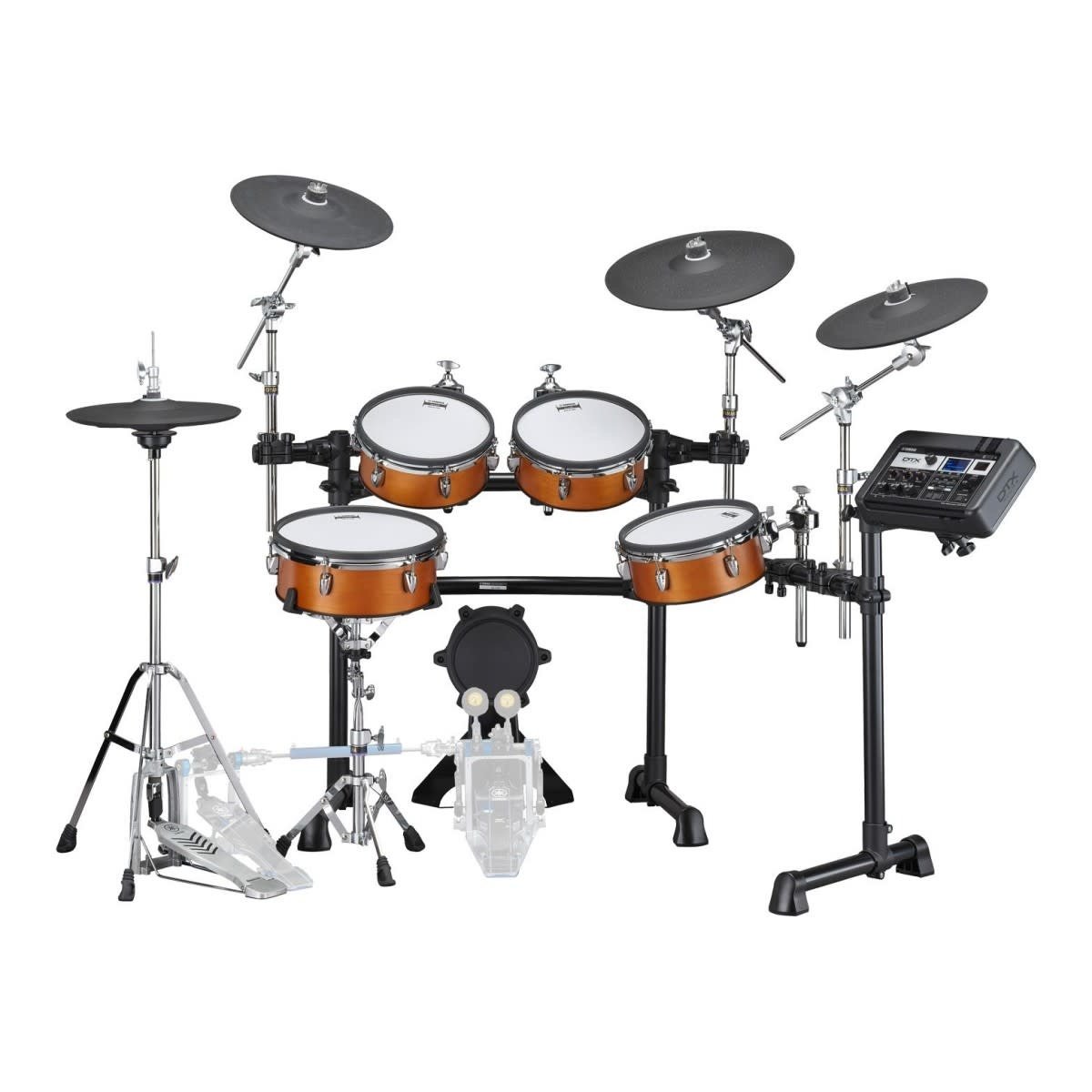

Yamaha DTX8K-M Electronic Mesh Drum Kit, Real Wood

Information

The new definition of upper mid-range in Yamaha E-Drums has arrived. The new Yamaha DTX8K-M RW comes with an absorbing host of new features unique to the range. Yamaha have combined their knowledge of acoustic drums and integrated it into their E-Drum range, producing the newest in digital drumming, sampling, and music technology. Designed for players of all levels, the professional sounds and features offer a massive technological leap forward. Create, Inspire, Connect: this mantra stays true with the new DTX8 line.

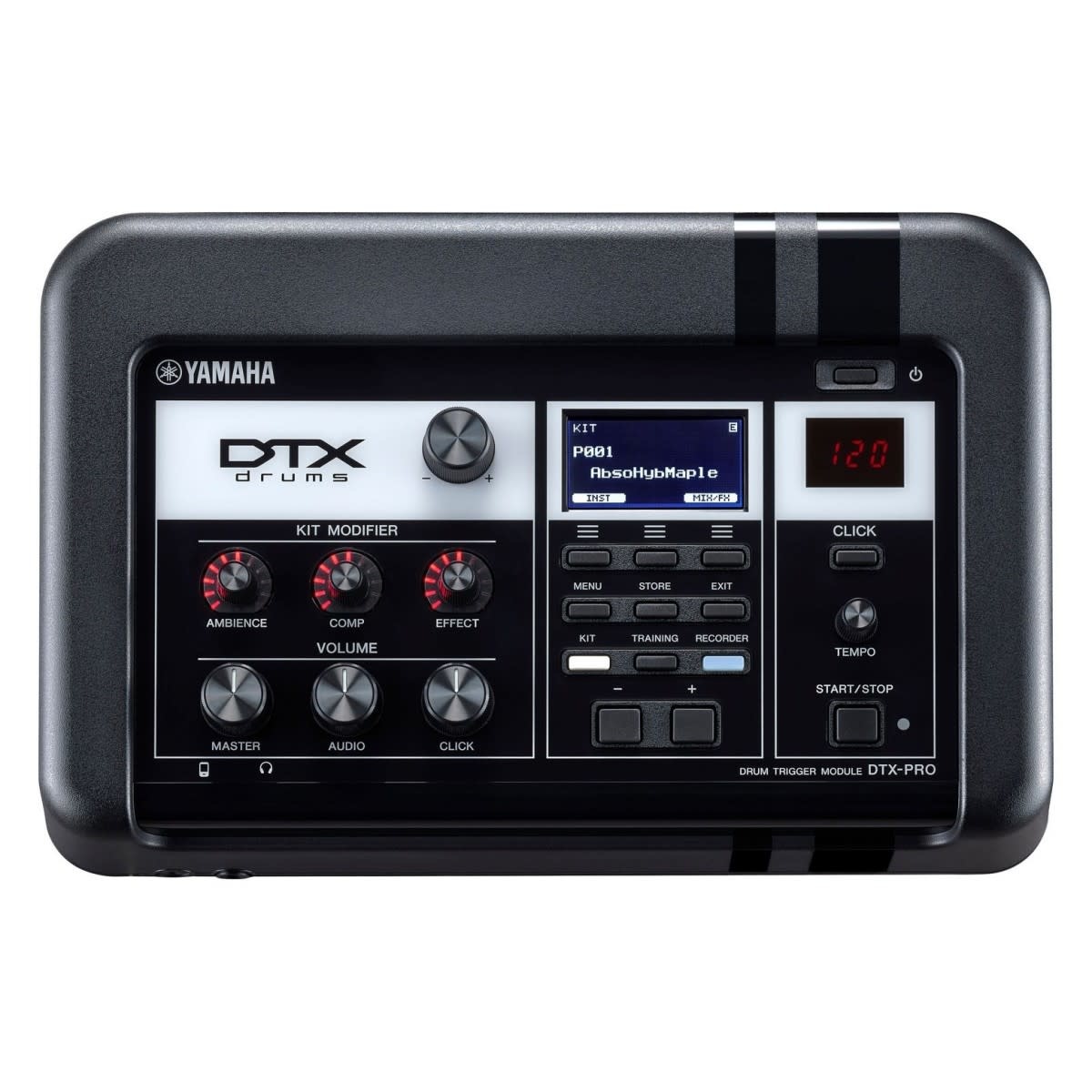

The DTX-PRO Drum module comes with 400+ internal sounds, all recorded in some of Europe's top studios with state-of-the-art equipment. Able to change the tone of these with DTX-PRO modules unique Kit Modifier Knobs, you can manipulate the sound through inbuilt compression, real-time effects and ambience recorded alongside the samples. World class drum sounds, musical effects and a host of Yamaha know-how make this a creative Eden, with endless sonic possibilities for all drummers.

Included:

• DTX-PRO Sound module (x1)
• XP125SD-X Snare Pad (x1)
• XP105-X Tom Pad (x3)
• PCY135 Pad (2x crashes)
• PCY155 Pad (1x ride)
• RHH135 Hi Hat pad on Yamaha Hi Hat stand
• KP90 Kick Pad (x1)
• RS8 Rack System
• Power adapter, module holder & manual

Configuration:

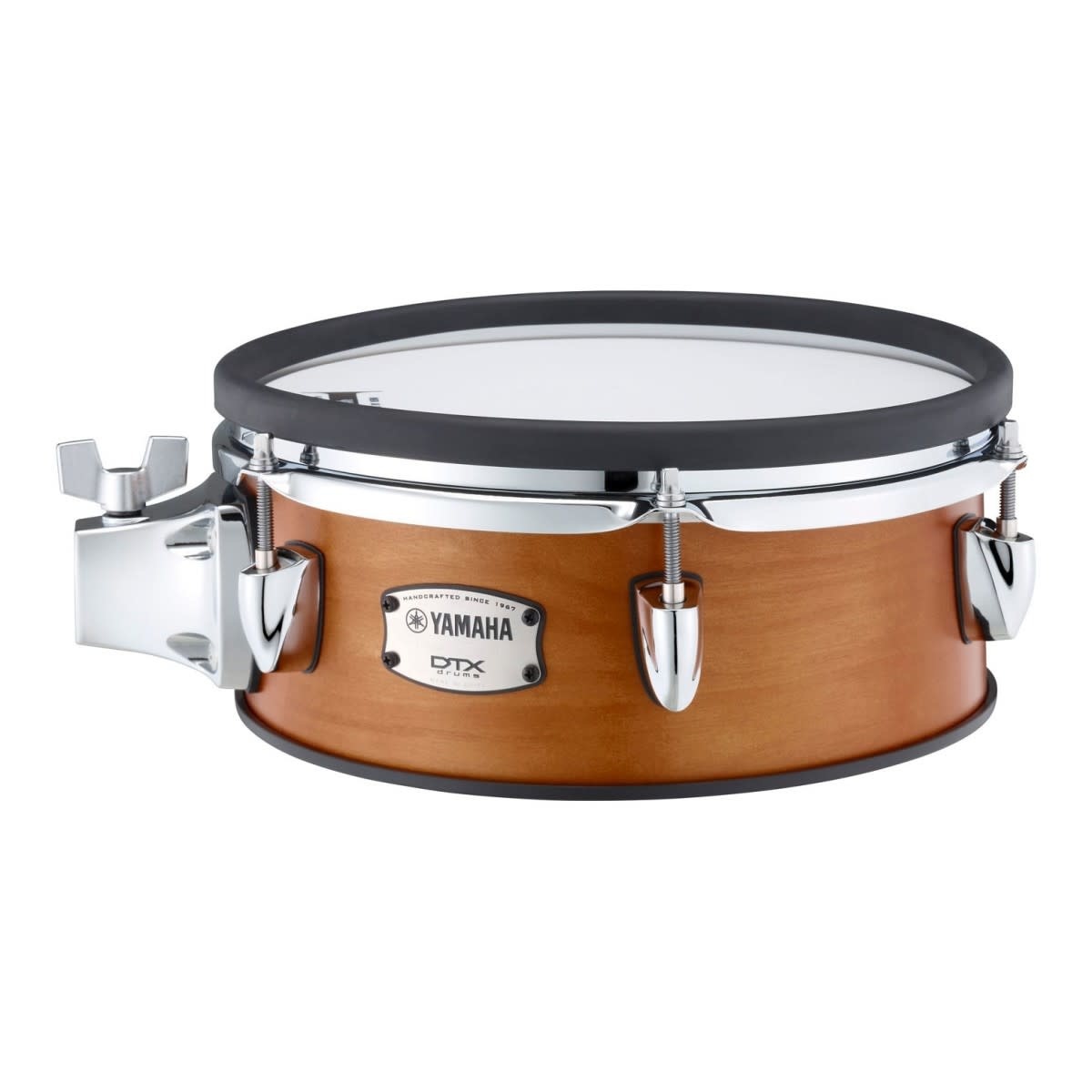

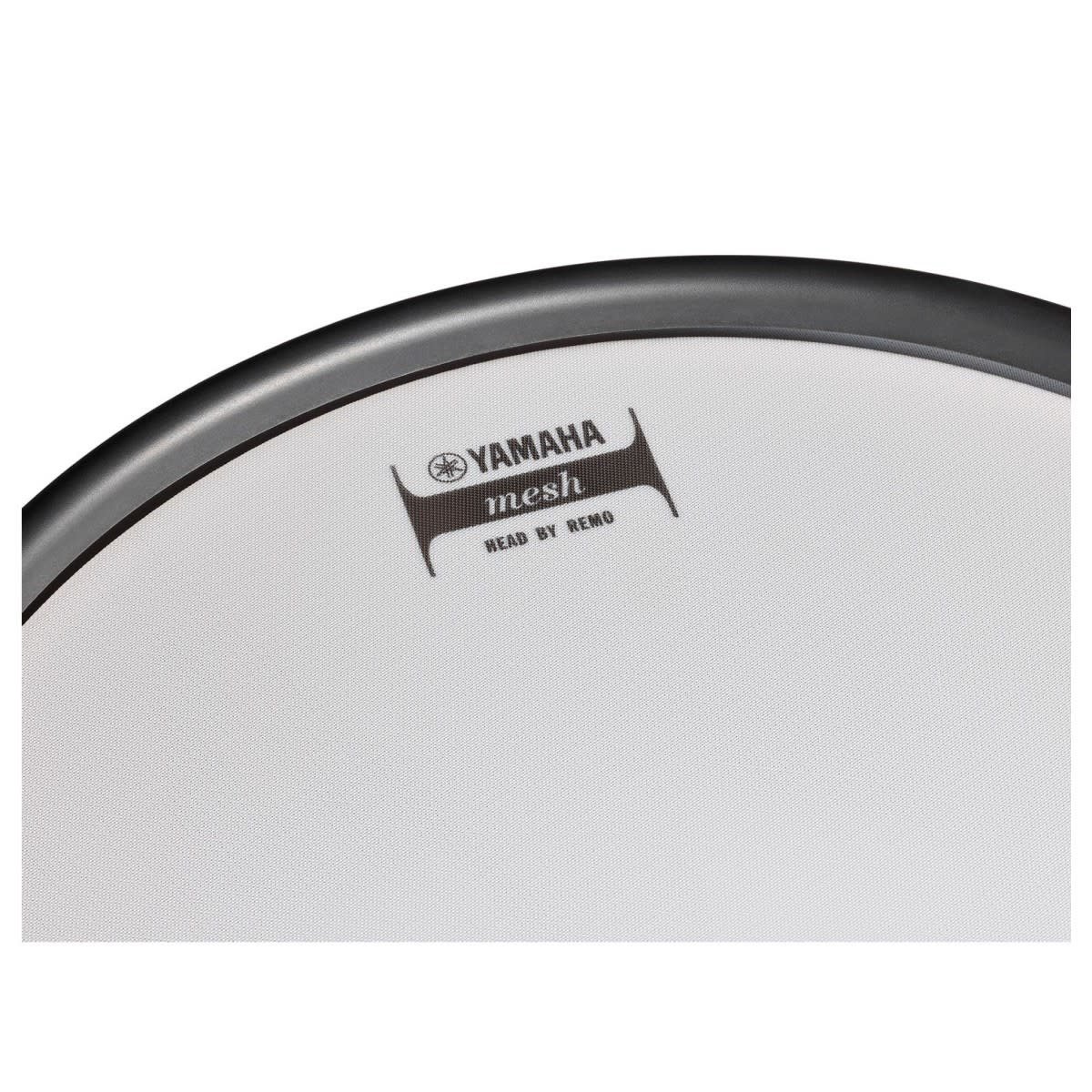

• Snare: XP125SD-X (12 inch) mesh head, 2-zone pad
• Tom 1, 2: XP105-X (10 inch) mesh head 2-zone pad
• Floor Tom: XP105-X (10 inch) mesh head head 2-zone pad

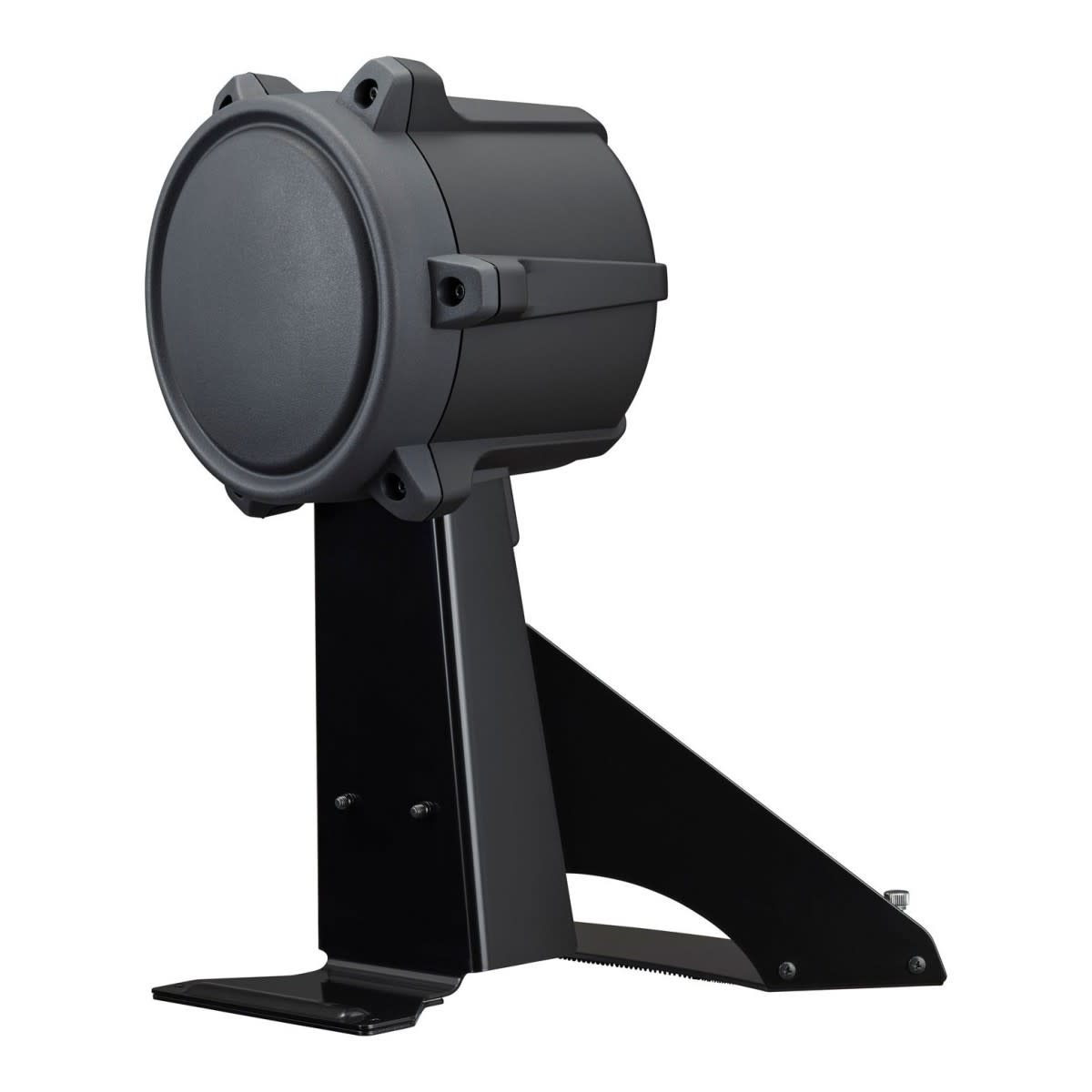

• Bass Drum: KP90 (7.5 inch) rubber head with Multi-layer cushion
• Hi-Hat: RHH135 (13 inch) 2-zone pad
• Crash Cymbal 1: PCY135 (13 inch) 3-zone pad
• Crash Cymbal 2: PCY135 (13 inch) 3-zone pad
• Ride Cymbal: PCY155 (15 inch) 3-zone pad
• Hi-Hat Stand: HS650A
• Rack System: RS8
• Shell: Birch
• Shell Finish: Real Wood

Module Specifications:

• Dimensions: 303mm (W) x 196mm (H) x 66mm (D)
• Weight: 3.1kg
• Maximum Polyphony: 256 notes
• Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
• Drum Kits: Preset (40) / User (200)
• Voices: 712
• Click:
• Click Sets: 30
• Tempo: 30 to 300 BPM, Tap Tempo supported.
• Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
• Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
• Others: Individual click volume control, wav import, timer
• Training Types: 10
• Training Songs: Preset (37) / User (1)
• Audio Import Limit: 1,000 files
• Maximum Loadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
• Sample Format: WAV
• Internal Recording Memory: Maximum of 90 seconds
• USB Flash Drive: Maximum of 90 minutes per file
• Format: Record/playback: WAV (44.1 kHz, 16 bit, stereo)
• Display: Full Dot LCD (128×64 dot)

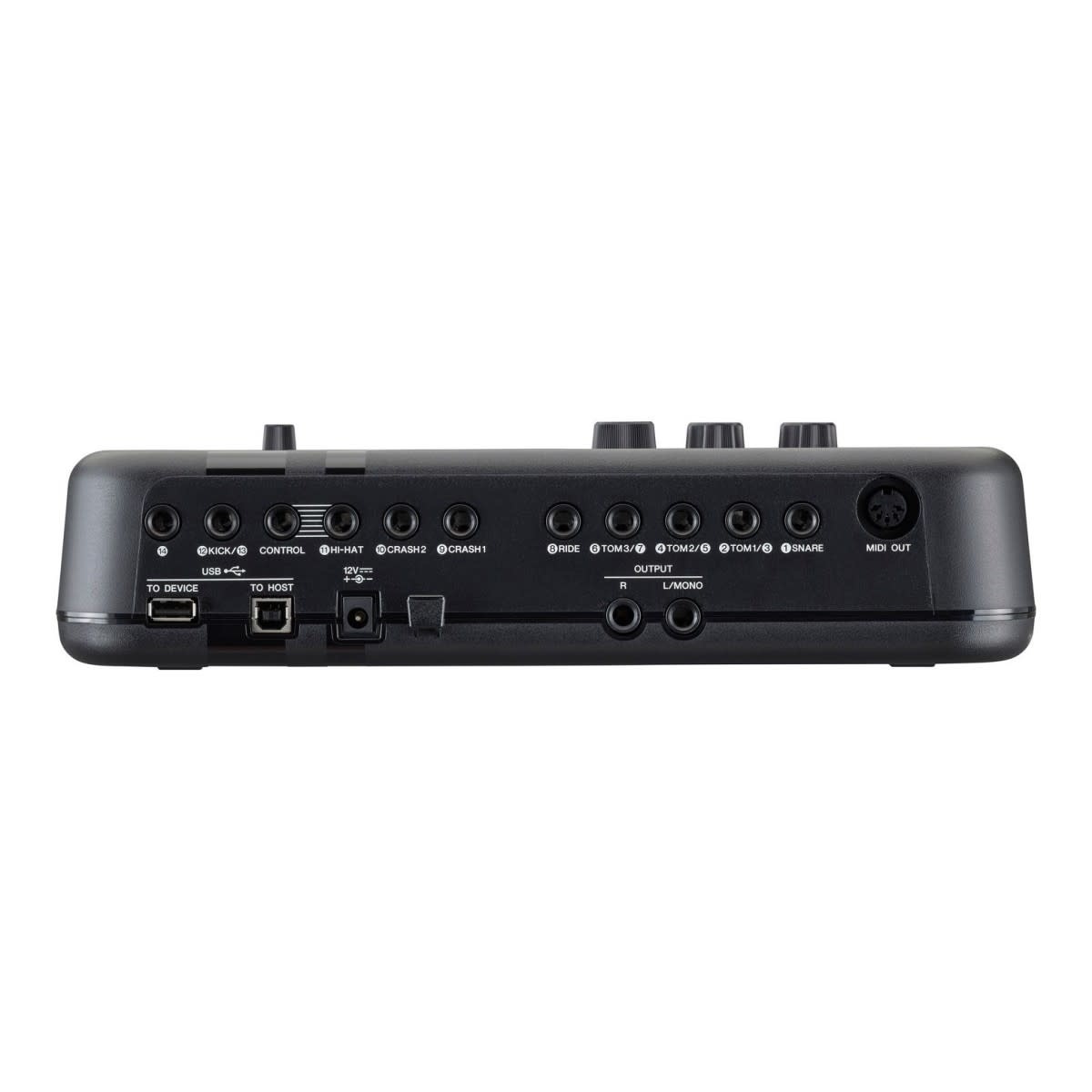

• Connectivity:
• DC IN: DC IN (+12V)
• Headphones: Headphones (standard stereo phone jack x 1)
• AUX IN: AUX IN (stereo mini jack x 1)
• Output: OUTPUT L/MONO, R (standard phone jack, one for each)
• USB: USB TO DEVICE, USB TO HOST
• MIDI: MIDI OUT
• Trigger Input: Trigger inputs 1, 14: (Standard stereo phone, L: Trigger, R: Rim switch / Trigger), 2/3, 4/5, 6/7, 12/13: (Standard stereo phone, L: Trigger, R: Trigger), 8, 9, 10, 11: (Standard stereo phone, L: Trigger, R: Rim switch) *Maximum 14 of pads to be connected (when Y-cable is used)
• Accessories: AC adaptor (PA-150 or an equivalent recommended by Yamaha)*2, Owners Manual, module holder, module holder wing bolts (x 4), Cubase AI Download Information *2 May not be included depending on your area. Check with your Yamaha dealer.

Please note: Kick pedal not included.
